Equilibrium geometries

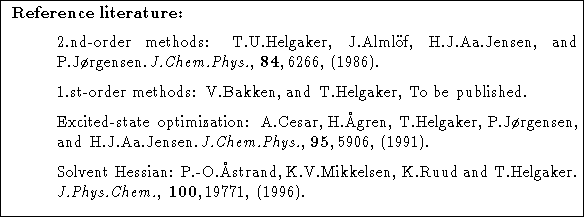

tex2html_wrap9425

A minimal input file for the location of a molecular geometry corresponding to minimum molecular energy (using a second-order optimization  method) and performing a vibrational analysis  at the stationary point, as well as determining the nuclear shielding  constants at the optimized geometry, will look like (assuming a Hartree-Fock wave function):

**DALTON INPUT
.MINIMIZE
**WAVE FUNCTIONS
.HF
**FINAL
.VIBANA
.SHIELD
*END OF INPUT

The keyword .MINIMIZE   signalizes a search for a minimum, that is, a stationary point on the molecular surface with Hessian index 0 using a second-order geometry optimization procedure as described in Ref. [7]. At the final, optimized geometry the input in the **FINAL   section requests a vibrational analysis and the evaluation of nuclear shieldings.

In second-order methods the Hessian  is calculated at every geometry. The analytical Hessian naturally gives a better description of the potential energy surface than the approximate Hessians of first-order methods, and fewer steps will usually be needed to reach the minimum. However, the price one has to pay for this, is that each iteration uses significantly more CPU time. Another advantage of second-order methods, is that the program will automatically break the symmetry  of the molecule, if needed in order to reach a minimum (unless the user specifies that symmetry not should be broken). If one wants to minimize a water molecule starting from a linear geometry and using molecular symmetry, a first-order method will ``happily'' yield a linear geometry with optimized bond lengths, whereas the second-order method will correctly decide that symmetry should be reduced to C tex2html_wrap_inline9397 and minimize the molecule. The bottom-line is, however, that while second-order methods definitely are the more robust, they will generally be outperformed by the much more time-efficient first-order methods.

If you are convinced that the symmetry of your starting geometry is the correct, you may take advantage of the fact there will not be any forces out of the totally symmetric modes of the molecules, and thus only evaluate the Hessian in the totally symmetric Cartesian symmetry coordinates. This can be achived with the input:

**DALTON INPUT
.WALK
.TOTSYM
**WAVE FUNCTIONS
.HF
**FINAL
.VIBANA
.SHIELD
*END OF INPUT

In case a vibrational analysis has been requested at the optimized geometry, the program will recalculate the complete molecular Hessian at the optimized geometry in order to be able to evaluate all frequencies. Note that the generalized potential energy surface routines have to be used, indicated by the keyword .WALK  . We also note that any requests for static polarizabilities , Cioslowski population analysis , dipole gradients  or vibrational circular dichroism (VCD)   will be ignored as all the necessary property vectors will not be available. However, at the optimized geometry, the full Hessian will be evaluated, as may then also these properties.

For direct calculations  -- where the two-electron integrals are not stored on disc -- the cost of a second-order geometry optimization algorithm may become prohibitely expensive despite the rather few iterations normally needed to converge the geometry. In these cases, it may be advantageous to use first-order geometry optimization  routines as illustrated in the following input:

**DALTON INPUT
.MINIMIZE
*MINIMIZE
.1STORD
**WAVE FUNCTIONS
.HF
**FINAL
.VIBANA
.SHIELD
*END OF INPUT

The above input yields a first-order optimization [8] in redundant internal coordinates [14, 15, 16]  using the BFGS   Hessian update. This means that only the energy and the gradient is calculated in each iteration, and an approximate Hessian is obtained using the gradients and the displacements. The initial Hessian is diagonal in the redundant internal coordinates. To obtain the properties at the optimized geometry, the Hessian has to be calculated. By looking at the vibrational frequencies one can then verify that a true minimum has been reached (as all frequencies are real, corresponding to a positive definite Hessian).

Several first-order methods have been implemented in DALTON, the recommended method being the Broyden-Fletcher-Goldfarb-Shanno (BFGS) Hessian updating scheme  . Though other updates may perform better in certain cases, the BFGS update generally seems to be the most reliable and thus is the default method.

Without the calculation of the Hessian at the optimized geometry, one can never be sure that the geometry is indeed a minimum, and this is the main problem with first-order methods.

Both first- and second-order methods are based on trust-region  optimization. The trust-region is the region of the potential energy surface where our quadratic model (based on an analytical or approximate Hessian) gives a good representation of the true surface. This region is given the shape of a hypersphere. In the trust-region based optimization algorithm, the radius of the trust-region is automatically updated during the optimization by a feedback mechanism. Occasionally, however, the potential surface may show locally large deviations from quadratic form. This will result in a large disagreement between the predicted energy change and the energy calculated at the new geometry. If this deviation is larger than a given threshold the step will be reduced through a decrease in the trust radius and a simple line search. A quadratic function is fitted to the rejected energy and the previous energy and gradient. The minimum of this function is then used as the new step, and this process may be repeated.

Another consideration concerning optimizations, is the choice of coordinate system. Second-order methods doesn't seem to be very sensitive to this, but it may be crucial to the performance of first-order methods. DALTON provides the normal Cartesian coordinates  and redundant internal coordinates , the latter being highly recommended when using first-order methods. Redundant internal coordinates consists of all bond lengths, angles and dihedral angles in a molecule, and the redundancies are removed through projection. The default for second-order methods is Cartesian coordinates, while redundant internal coordinates is the default for first-order methods.

The program decides when a minimum is reached through a set of convergence criteria . These will be set automatically depending on the accuracy of the wavefunction using three different criterions, namely the change in energy between two iterations, the norm of the molecular gradient  and the norm of the step . The threshold for convergence are for all these criterions the maximum of 1.0D-6 and two times the convergence threshold for the wave function. Two out of these three have to decrease below its threshold, before the program declares convergence. These criteria ensure a good geometry suitable for vibrational analysis, but may be unnecessary tight if one only wants the energy. The convergence criteria can be controlled through the input file. One should keep in mind that while second-order methods are rather insensitive to changes in theses thresholds due to their quadratic convergence, first-order methods may run into severe trouble if the criteria are too close to the accuracy of the wavefunction and the gradient.

In case of non-variational  wave functions, where a numerical gradient  is used, the threshold for convergence is reset to 1.0D-4, due to possible numerical instabilities occuring in the finite difference  methods employed to determine the molecular gradient .

We also note that for optimization of excited states  where the state of interest is not the lowest of it's symmetry, that most of the parameters controling the trust-region optimization method will be reset to much more conservative values, as one in such calculations will loose the possibility of back-stepping during the wave function optimization, as well as in order to ensure that the start wave function at the new geometry is within the local region of the optimized wave function.

Calculations involving large basis sets may be very time-consuming, and it becomes very important to start the optimization from a decent geometry. One way to solve this is through preoptimization , that is, one or more smaller basis sets are first used to optimize the molecule. DALTON supports the use of up to ten different basis sets for preoptimization. This may also be used as a very effective way to get the optimized energy of a molecule for a series of basis sets. One may also want to calculate the energy of a molecule using a large basis set at the optimized geometry of a smaller basis set, and this is also supported in DALTON, but limited to only one single-point basis set. Both these features are illustrated in the input file below:

**DALTON INPUT
.MINIMIZE
*MINIMIZE
.PREOPT
2
STO-3G
4-31G
.SP BAS
cc-daug-pVTZ
**WAVE FUNCTIONS
.HF
*END OF INPUT

As one can see, two small basis sets have been chosen for preoptimization . Note that they will be used in the order they appear in the input file, so one should sort the sets and put the smaller one at the top for maximum efficiency. The ``main'' basis set, that is, the one that will be used for the final optimized geometry, is specified in the file MOLECULE.INP as usual. After the last optimization, the energy of the molecule will be calculated at the final geometry with the cc-daug-pVTZ basis. Please note that these features will work only when using basis sets from the basis set library.

It is possible to control the optimization procedure more closely by giving the program instructions on how to do the different parts of the calculation. Below we have listed all the modules that may affect the geometry optimization as well as a short description of which part of the calculation that module controls. The reader is referred to the section describing each module for a closer description of the different options. These sections may, with the exception of the *MINIMIZE   and *WALK   section, be specified in any of the modules **START  , **PROPERTIES  , **FINAL  . The *MINIMIZE   and *WALK   is to be placed in the **DALTON   module, and will apply to the entire calculation.

*GEOANA
Describes what kind of information about the molecular geometry is to be printed.
*GETSGY
Controls the set up of the right-hand sides (gradient terms).
*MINIMIZE
Controls the first- and second-order minimization methods (gradient terms).
*NUCREP
Controls the calculation of the nuclear contributions.
*ONEINT
Controls the calculation of one-electron contributions.
*RELAX
Controls the adding of solution and right-hand side vectors into relaxation contributions.
*REORT
Controls the calculation of reorthonormalization terms.
*RESPON
Controls the solution of the geometric response equations.
*TROINV
Controls the use of translation and rotational invariance.
*TWOEXP
Controls the calculation of two-electron expectation values.
*VIBANA
Set up the vibrational and rotational analysis of the molecule.
*WALK
Controls the walk (see also ``Locating transition states'' and ``Doing Dynamical walks'').
